CX-230 Barrier Washer Widely used in hospitals, food, biopharmaceutical, nuclear power plants and other laundry rooms with strict dust-free

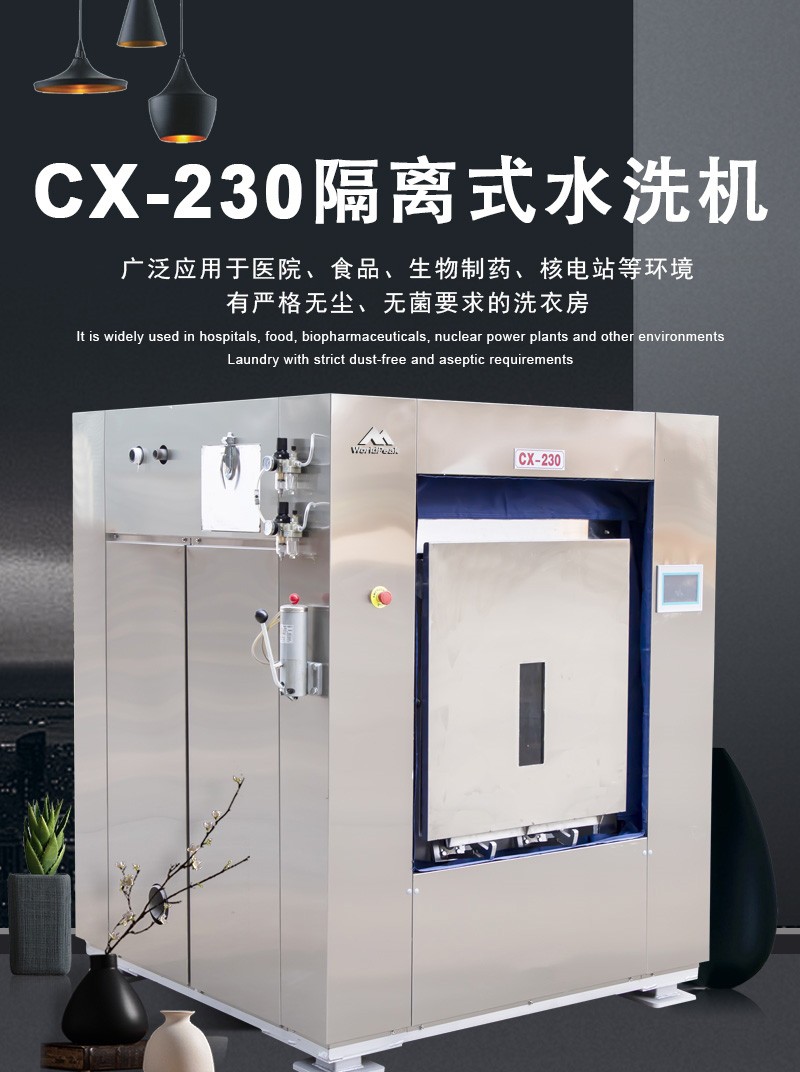

CX-230 Barrier Washer
Widely used in hospitals, food, biopharmaceutical, nuclear power plants and other laundry rooms with strict dust-free and sterile requirements
| Parameter Item | CX230 | CX250 | CX2100 |
|---|---|---|---|
| Rated Washing Capacity (kg) | 30 | 50 | 100 |
| Washing Time (min) | 45~60 | 45~60 | 45~60 |
| Drum Diameter (mm) | 800 | 980 | 1200 |
| Drum Depth (mm) | 600 | 670 | 885 |
| Motor Power (KW) | 4 | 5.5 | 7.5 |
| Inverter Power (KW) | 5.5 | 7.5 | 11 |
| Cold Water Inlet (inch) | DN40 | DN40 | DN40 |
| Hot Water Inlet (inch) | DN40 | DN40 | DN40 |
| Steam Inlet (inch) | DN25 | DN25 | DN25 |
| Drain Outlet (mm) | Φ89 | Φ89 | Φ114 |
| Compressed Air Pressure (MPa) | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 |
| Overall Dimensions Height (mm) | 1725 | 1910 | 2205 |
| Overall Dimensions Depth (mm) | 1325 | 1505 | 1735 |
| Overall Dimensions Width (mm) | 1455 | 1525 | 1900 |
| Machine Weight (Kg) | 1380 | 1790 | 3220 |
Note: As our equipment is continuously upgraded and iterated, the product appearance and parameters in the materials are for reference only. If there are any changes, the actual product shall prevail.
